        SV 1217
          LV 1827



Features:

  • Patent Pending
  • Fuse protected
  • All Stainless Steewelded construction
  • Maintenance free polished edges  ( Forming area)
  • Small internal chamber which allows quicker suction
  • UL and CE certified components
  • Operates on household 110-120 AC current also available in 210-240 volts single phase for international customers
  • Stainless steel welded and polished quick load plastic frame ( adjustable to accommodate different plastic thicknesses ) slides down quickly before plastic starts to cool
  • Heavy duty 10' grounded electrical cord
  • Symmetrically heating element ( 1500 Watt ) engineered  for uniform heat distribution to critical areas with no dead spots
  • Forms plastics up to 1/4"
  • Precut plastic is available
  • Additional outlets are integrated in to the unit which allows additional (storage tanks - vacuum pumps- shop vacs) to be connected to the unit
  • Operator’s Manual is included with tricks on vacuum forming and molds
  •  Works with all formable  plastics  which include : Styrene, Acrylic or Plexiglas, Pet-G, PVC, ABS, Polyethylene, vinyl, and many more
  • This unit can be used for production, prototyping, Magnetic letters, molds for plaster/concrete/candy/chocolate, Packaging, Blister packaging, Skin Packaging, sign making, mask making, special effects, RC Parts (cowls - wingtips - canopies) and many more
  • Limited lifetime warranty and free technical support

MORE INFORMATION:
The EZFORM ® series have an opening to attach your vacuum source (shop vac or other common household vacuums) and an additional outlet to add an electric pump  if needed.  A Shop vac or similar vacuum removes  a lot of air quickly but it does not have a lot of torque a pressure sensitive valve closes automatically when the vacuum is no longer able to suction and what is  left can be  evacuated by an electric pump if needed (A vacuum  pump removes less air with more torque)

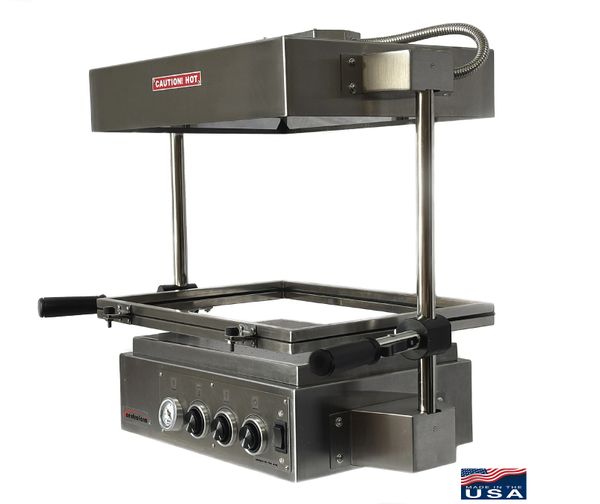

        EZFORM ® SV 1217 VACUUM FORMING MACHINE    $1495.00

  ( US Lower 48 states  $49.00 Shipping )



         Specifications:

  • Unit measures : 28 "  high  x 25 "  long x 16 "  wide
  • Plastic sheet size : 15 1/4 "  x  20 1/4 "
  • Forming area : 12 " x 17 "
  • Weight : 48 lbs
  • Heater : 1500 Watts
  • Voltage : 110-120  ( Also available in 210 - 240 volts single phase )
  • Max. depth of draw 7 inches depending on mold Geometry
  • Vacuum Ports : 1 1/2 " and  and 3/8 "

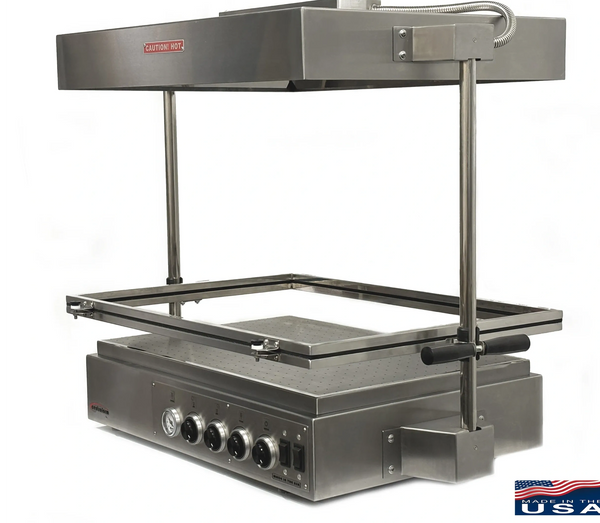

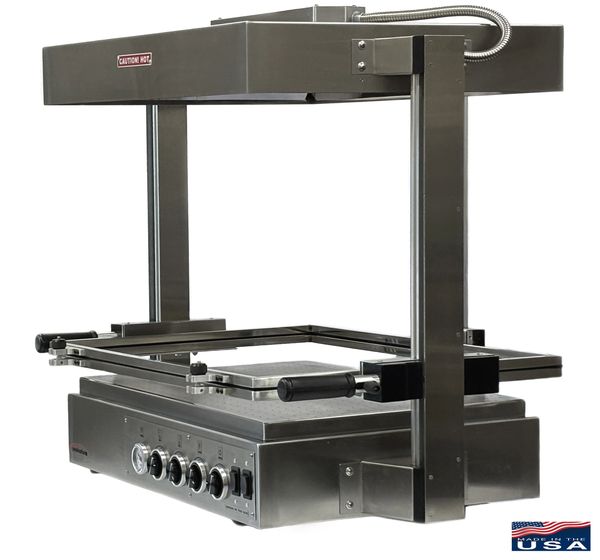

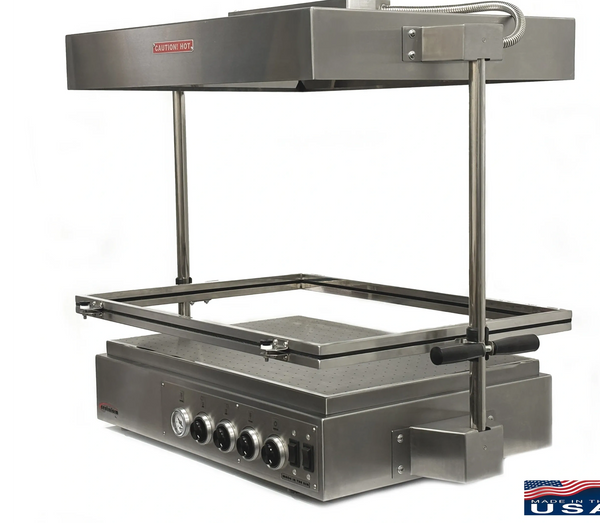

    EZFORM ® LV 1827 VACUUM FORMING MACHINE   $2095.00
      ( US Lower 48 states   $89.00 Shipping )


           Specifications:

  • Unit measures : 30 " high  x  35 "  long   x  21 "  wide
  • Plastic sheet size : 21 1/4 " x  30 1/4 "
  • Forming area : 18 " x  27 "
  • Weight : 65 lbs
  • Voltage :  110-120  ( Also available in 210 - 240 volts single phase )
  • Max. depth of draw 9 -11 inches depending on mold Geometry
  • Vacuum Ports : 1 1/2 " and  and 3/8 "
  • Heater : 1500 Watts  x 2 ( 3000 Watts Total )
 To place your order by phone ( credit card ) please call 818. 246. 3406

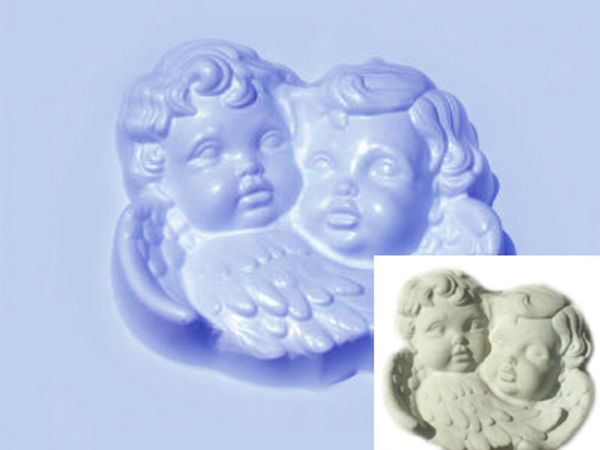

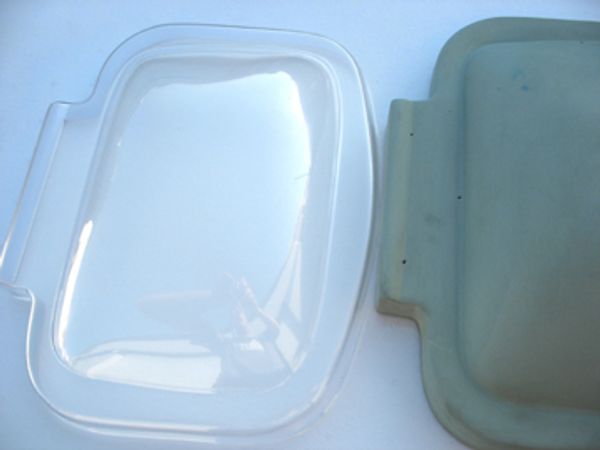

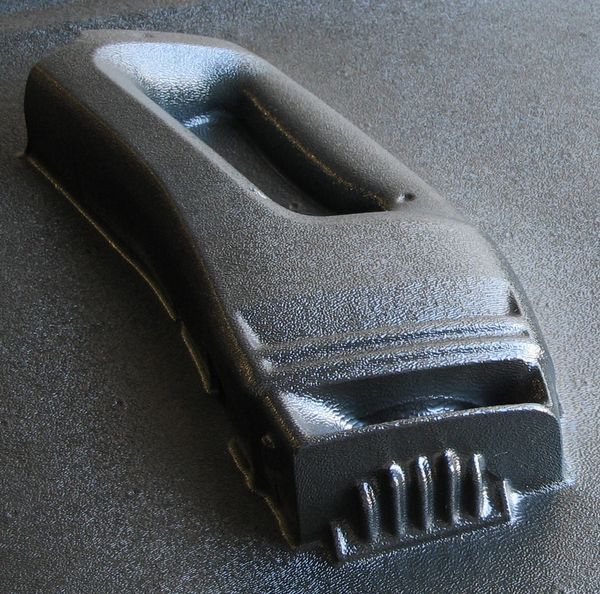

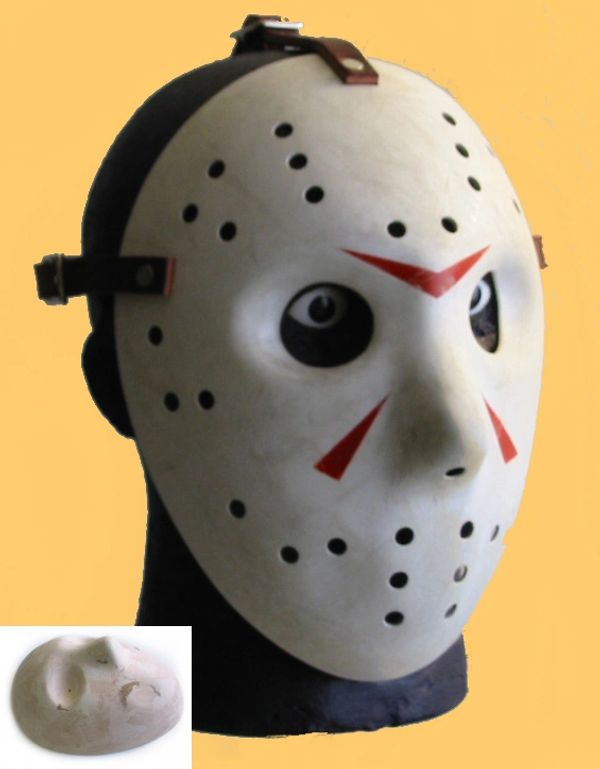

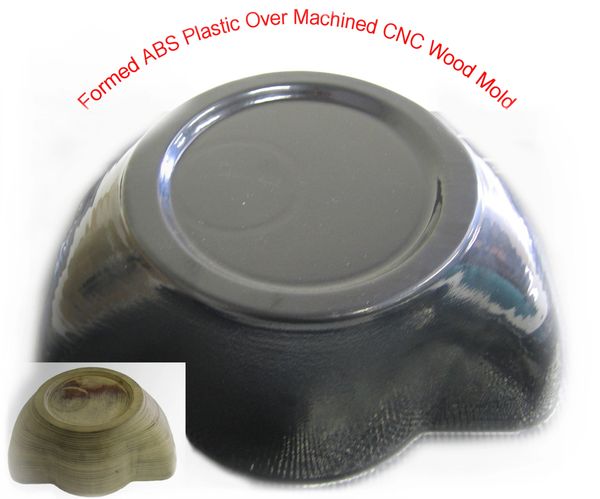

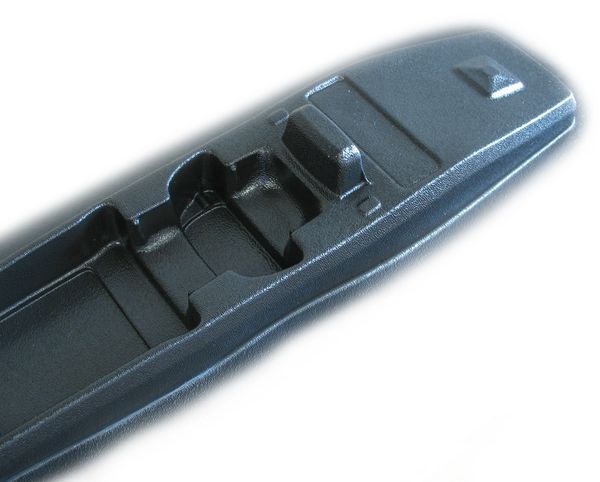

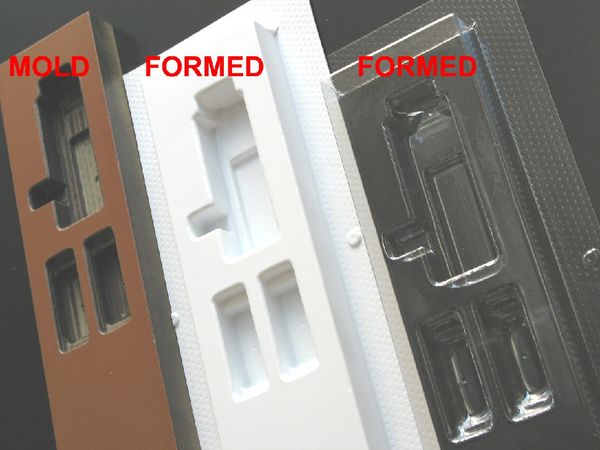

    Formed samples click for larger picture







    Forming area with polished edges
